2SB700

Properties at a glance

  • ft
    10
    MHz
  • hFE
    35
    β
  • Ic
    12
    A
  • Pc
    100
    W
  • Pol
    PNP
  • Tj
    150
    °C
  • TranMat
    Si
  • Vcb
    160
    V
  • Vce
    140
    V
  • Veb
    5
    V

Find similar components to the 2SB700 by clicking the properties (above) that you want to match.

Component Package & Description

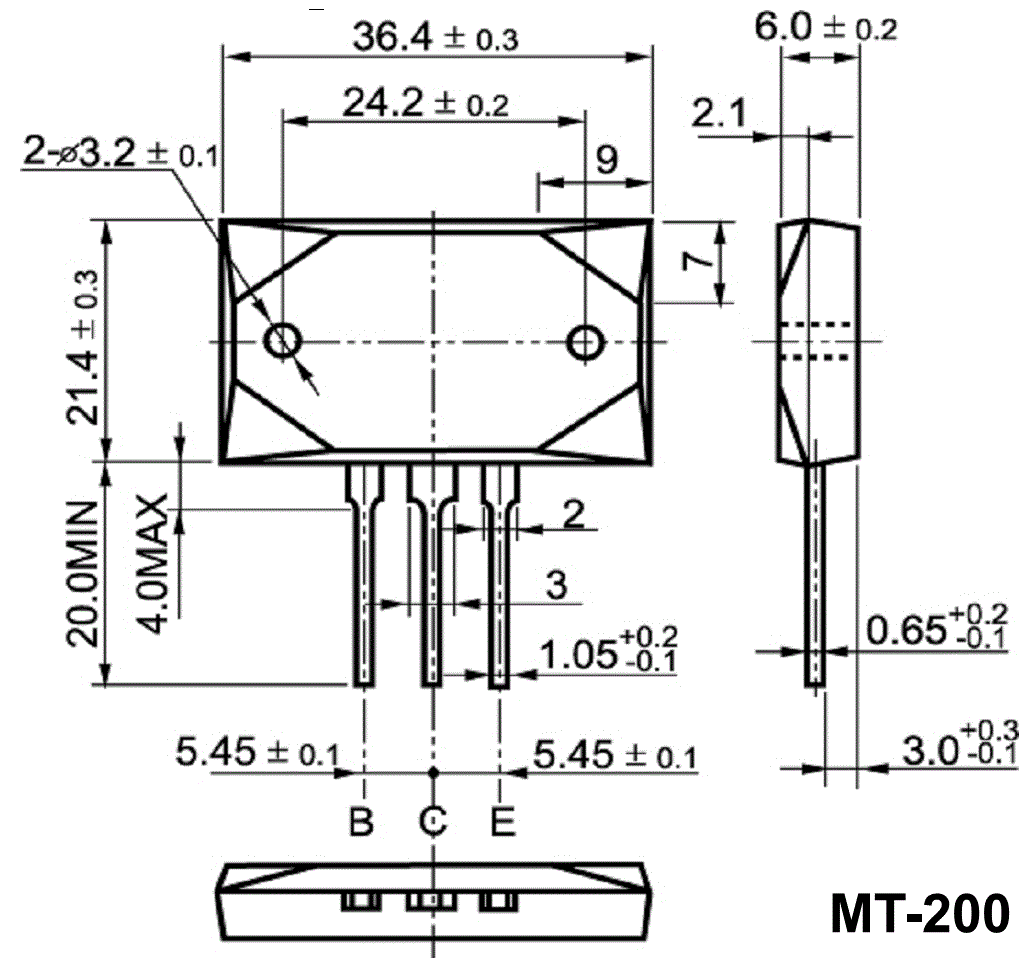

Part number 2SB700 is reportedly available in a MT-200 package.

External Resources

Properties and Attributes

Transition Frequency ft
10 MHz
Forward Current Transfer Ratio hFE
35 β
Maximum Collector Current Ic
12 A
Maximum Power Dissipation Pc
100 W
Polarity Pol
PNP
Maximum Junction Temperature Tj
150 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
160 V
Maximum Collector-Emitter Voltage Vce
140 V
Maximum Emitter-Base Voltage Veb
5 V
