NT407F

Properties at a glance

  • hFE
    10
    β
  • Ic
    7
    A
  • Pc
    40
    W
  • Pol
    NPN
  • Tj
    150
    °C
  • TranMat
    Si
  • Vcb
    450
    V
  • Vce
    400
    V
  • Veb
    10
    V

Find similar components to the NT407F by clicking the properties (above) that you want to match.

Component Package & Description

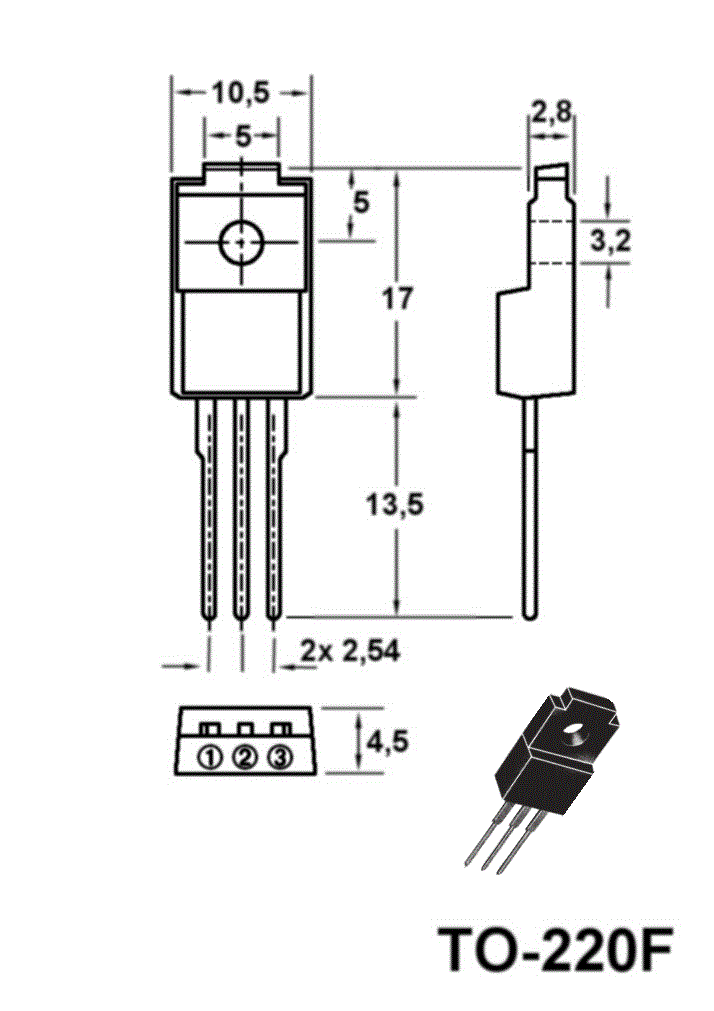

Part number NT407F is reportedly available in a TO-220F package.

External Resources

Properties and Attributes

Forward Current Transfer Ratio hFE
10 β
Maximum Collector Current Ic
7 A
Maximum Power Dissipation Pc
40 W
Polarity Pol
NPN
Maximum Junction Temperature Tj
150 °C
Material of Transistor TranMat
Si
Maximum Collector-Base Voltage Vcb
450 V
Maximum Collector-Emitter Voltage Vce
400 V
Maximum Emitter-Base Voltage Veb
10 V
