UT4413

Properties at a glance

  • Cd
    983
    pF
  • CntlChType
    P
    channel
  • FETType
    MOSFET
  • Id
    15
    A
  • Pd
    3
    W
  • Rds
    0.0066
    Ω
  • Tj
    150
    °C
  • tr
    23.5
    ns
  • Vds
    30
    V
  • Vgs
    25
    V

Find similar components to the UT4413 by clicking the properties (above) that you want to match.

Component Package & Description

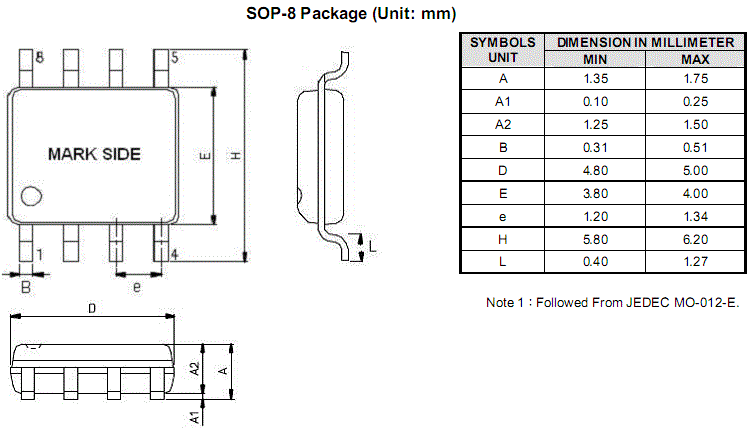

Part number UT4413 is reportedly available in a SOP-8 package.

External Resources

Properties and Attributes

Drain-Source Capacitance Cd
983 pF
Type of Control Channel CntlChType
P channel
FET Type FETType
MOSFET
Maximum Drain Current Id
15 A
Maximum Power Dissipation Pd
3 W
Maximum Drain-Source on-State Resistance Rds
0.0066 Ω
Maximum Junction Temperature Tj
150 °C
Rise Time tr
23.5 ns
Maximum Drain-Source Voltage Vds
30 V
Maximum Gate-Source Voltage Vgs
25 V
