IRG7PH42UD-EP

Properties at a glance

  • Cc
    124
    pF
  • Ic
    85
    A
  • IGBTChType
    N
    channel
  • Pc
    320
    W
  • Tj
    150
    °C
  • tr
    32
    ns
  • Type
    IGBT
  • Vce
    1200
    V
  • VCE(sat)
    1.7
    V
  • Vge
    30
    V

Find similar components to the IRG7PH42UD-EP by clicking the properties (above) that you want to match.

Component Package & Description

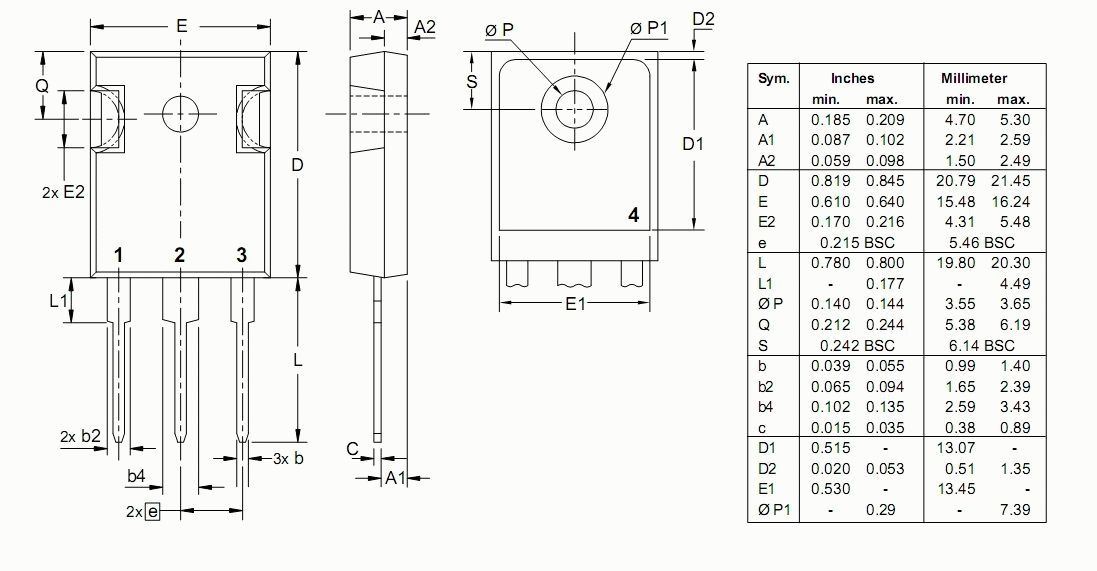

Part number IRG7PH42UD-EP is reportedly available in a TO-247AD package.

External Resources

Properties and Attributes

Collector Capacity Cc
124 pF
Maximum Collector Current Ic
85 A
Type of IGBT Channel IGBTChType
N channel
Maximum Power Dissipation Pc
320 W
Maximum Junction Temperature Tj
150 °C
Rise Time tr
32 ns
Component Type Type
IGBT
Maximum Collector-Emitter Voltage Vce
1200 V
Collector-Emitter Saturation Voltage (typical) VCE(sat)
1.7 V
Maximum Gate-Emitter Voltage Vge
30 V
